Steam Engine Design #3
Under Construction!!
This is basically the same approach as design #2, but mechanically much more simple.
- For an internal camshaft engine, remove the "push rods".
- For an overhead valve engine, remove each camshaft ("V" engine has 2) and rocker arms.
- This leaves all engine valves permanently in the "closed" position.
- Using a metal drill, enlarge the spark plug holes and "tap" for 1/2 inch standard pipe threads.

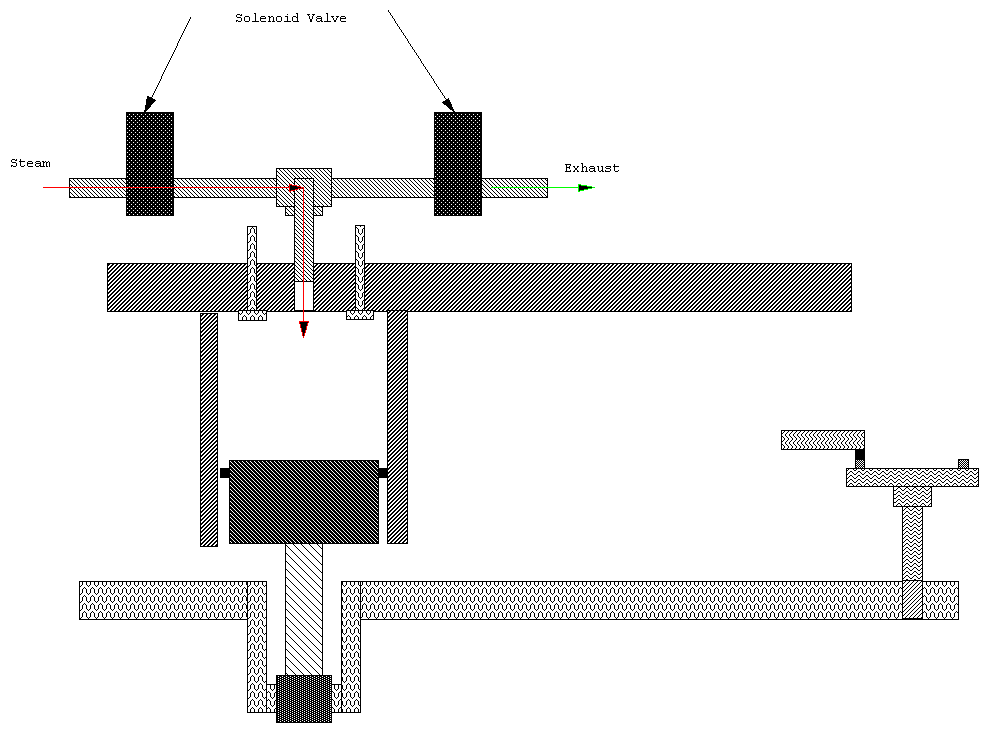

- Repeat the mechanical design below for each cylinder (except for Distributor and Controller).
